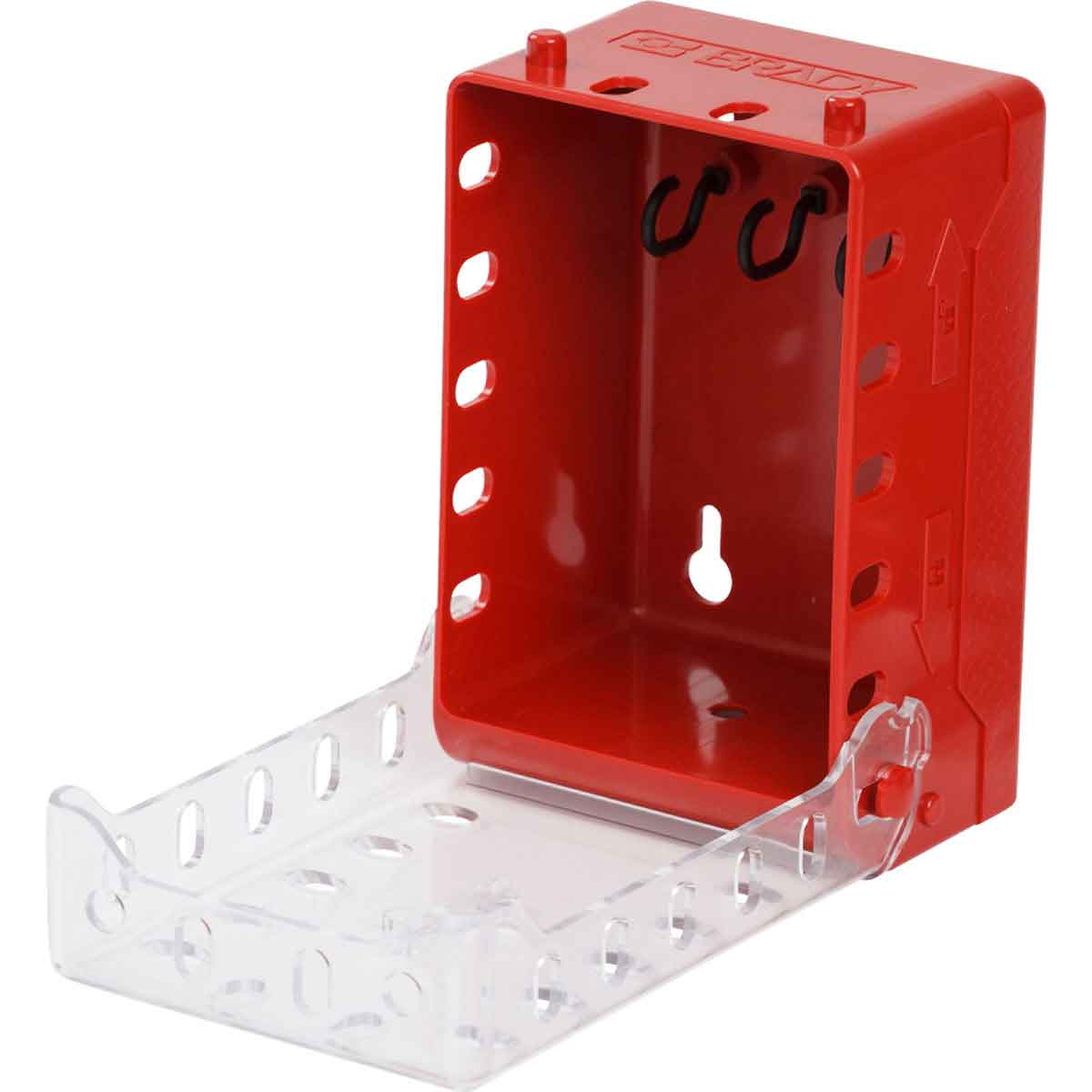

Compact lock box in red plastic for group locking during work and maintenance. With wall bracket for fixed mounting.
952 kr excl. VAT
Compact red plastic lock box for storing keys in industrial and service environments. Its small size makes it suitable where space is limited, while providing clear and protected storage.
The box comes with a wall bracket for fixed mounting, but can also be used freestanding if required. Suitable for use in operation, maintenance and installation where controlled key management is required.
| Key characteristics | Article number | 149173 |
| Order reference | ULTRA-COMPACT LOCKING CABINET, RED | |
| Total quantity per pack | 1 piece/package | |
| Minimum order quantity | 1 | |
| Application(s) | Lockout tagout | |
| Quantity | 1 | |
| Stamp | Brady | |
| Country of origin | China |
| Dimensions | Size - Width (mm) | 100.33 mm |
| Size - Height (mm) | 148,49 mm | |
| Size - Depth (mm) | 69.67 mm | |
| Weight (kg) | 0,272 kg | |
| Max shackle diameter (mm) | 6.35 mm | |
| Dimensions | 100.33 mm (W) x 148.49 mm (H) x 69.67 mm (D) |
| Material properties | Brady Material number | LOTO-79 (View technical data sheet) |
| Brady material type | Plastic | |
| Colour | Red | |
| Max. operating temperature °C | 128 °C | |
| Min. operating temperature °C | -20 °C |
| Product characteristics | Maximum number of padlocks attached | 12 |
| Maximum number of padlocks stored | 6 | |
| # hole | 10 | |
| Locking station filled or unfilled | Unfilled | |
| Fits suitable padlocks | Fits SafeKey and traditional padlocks |
| Pre-printed information | Legend | LOCK CABINET |
| Explanatory language | English, French, Spanish |
| What is included | Includes | Wall mounting bracket |
| Number of components | 1 |
| Compliance | UNSPSC | 39121904 |
| RoHS compliance status | Not applicable to this product | |
| REACH SVHC status | The part does not contain an SVHC substance | |
| REACH candidate list Date | 04 February 2026 | |
| Authorisation/Compliance | OSHA 1910.147 | |
| Product regulations | ATEX standpoint |
