Label printer cab™ Squix

Industrial label printer for thermal transfer and direct thermal printing with 300 or 600 dpi resolution. For labels on rolls or folded material with max roll diameter Ø142 mm.

Back to all products
Label printer cab™ Squix
Label printer cab™ Squix - Image 2
Label printer cab™ Squix - Image 3
Label printer cab™ Squix - Image 4

Offer price

SKU: N/A Category: Brand: st working days2-5 working daysContact usStock: (Choose variation)

Reliable industrial label printer for labelling in any environment

Cab Squix 4 is an industrial label printer for thermal transfer and direct thermal printing, developed for continuous operation in production, warehouse and logistics environments. The series is designed with a robust metal chassis and durable printing mechanics for long life and stable performance.
The printer handles labels on rolls or folded material as well as textile and continuous materials. Maximum roll diameter is Ø142 mm.
Squix 4 is available with 300 or 600 dpi resolution depending on the model and can be used stand-alone or integrated into networks and automation solutions via standardised interfaces.
Touch screen with colour display and clear icons provides easy access to settings and operating information.

  • Industrial construction: Robust metal chassis and durable mechanics for continuous operation.
  • Thermotransfer and direct thermo: Flexible printing depending on the material and application.
  • 300 or 600 dpi resolution: For crisp text, graphics and barcodes even on smaller label formats.
  • Max roller diameter Ø142 mm: Efficient material handling for longer journeys.
  • Several print widths within the series: Adapted for different label formats and applications.
  • Modular design: Can be equipped with a cutting function, dispenser or applicator.
  • Network and systems integration: USB, Ethernet and digital interfaces for industrial connectivity.
  • Touch screen with colour display: Clear and simple management.



Executions

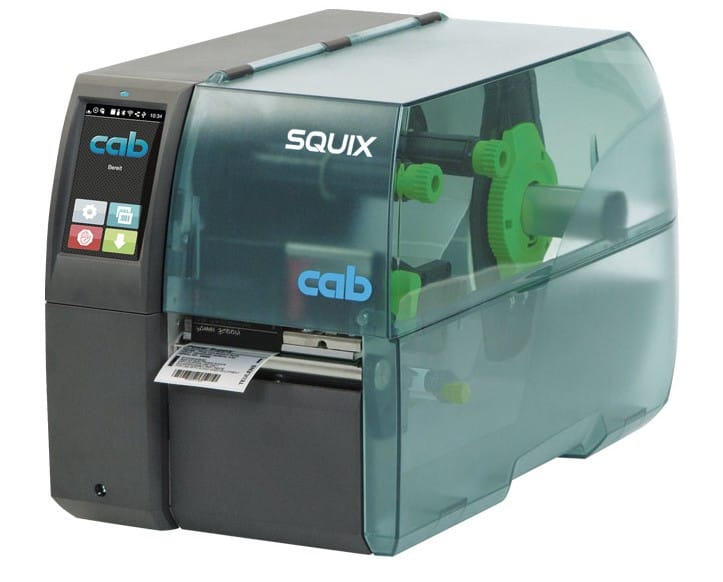

Standard version (left aligned material feed):
The label is ejected from the left side. Supplied with tear-off and can be supplemented with a cutting function, dispenser or applicator.

Centred material feed (M version):
The material is fed and printed centred in the printer. Adapted for narrow labels and shrink tubing where precise positioning is essential.

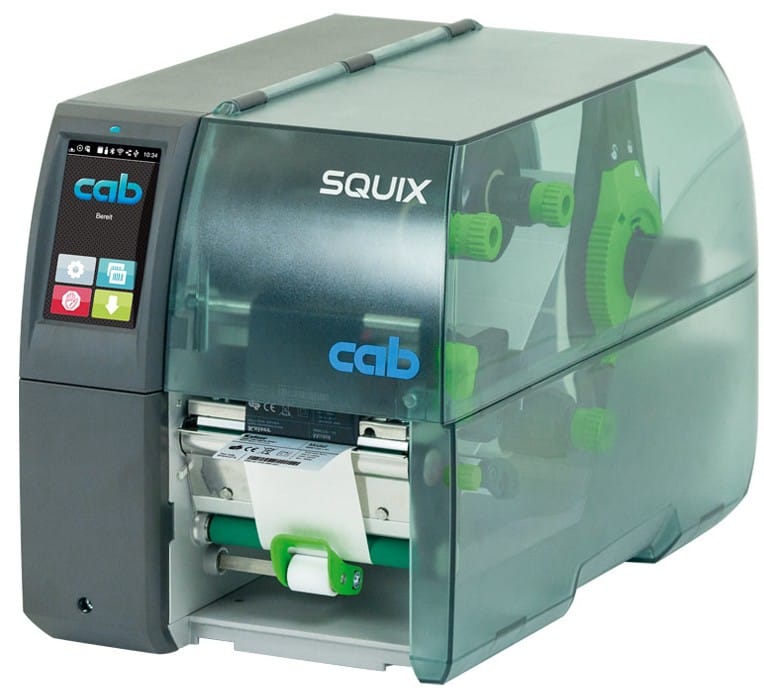

Dispenser design (MP):
Equipped with dispenser function for automatic peeling of label from carrier paper and internal liner rewinder. Has digital I/O for integration into automation solutions and can be combined with an applicator.

Machine type Left-handed Squix Basic, Squix P, Squix T Centred Squix M
Print head 4.3 4.3 4 4 4.3 4.3 4 4
Printing method: Thermal transfer Typical Typical Typical Typical Typical Typical Typical Typical
Printing method: Direct thermal Typical Typical Possible Possible Typical Typical Possible Possible
Resolution dpi 203 300 300 600 203 300 300 600
Print speed up to mm/s 250 250 300 150 250 250 300 150
Print width up to mm 104 108.4 105.7 105.7 104 108.4 105.7 105.7
Printable area: Distance from localisation edge, left aligned mm 2.8 1.2 2.0 2.0 - - - -
Printable area: Distance from the locating edge, centred mm - Centred on material
Material 1)
Rolled or folded: paper, cardboard, flat tubing, plastics PET, PE, PP, PI, PVC, PU, acrylate, Tyvec Typical Typical
On roll, reel or fanfold: pressed endless tubes, textile, Smart Labels Possible Typical
Label width1) mm 20 - 116 4 - 110
Label height1) mm 6 - 2,000 4 - 2,000
Label thickness mm 0.03 - 0.60 0.03 - 0.60
Liner material width mm 24 - 120 9 - 114
Liner material thickness mm 0.03 - 0.13 0.03 - 0.13
Endless materials width mm 24 - 120 9 - 114
Endless materials thickness mm 0.05 - 0.50 0.05 - 0.50
Endless materials weight (cardboard) up to g/m2 300 300
Pressed pipe width ready-for-use up to mm 120 114
Pressed pipe width endless mm - 4 - 85
Pressed pipe thickness up to mm 1.1 1.1
Roll outer diameter up to mm 205 205
Roll core diameter mm 38.1 - 100 38.1 - 100
Coil outer diameter up to mm - 205
Coil core diameter mm - 38.1 - 76
Coil outer width mm - 11 - 114
Linda Outside or inside Outside or inside
tape2)
Print page Outside or inside
Roll diameter up to mm 80
Core diameter mm 25.4
Variable length up to m 450
Width2) up to mm 25-114
Internal rewinder with dispensing unit
Outer diameter up to mm 142
Core diameter mm 38.1 - 40
Linda Exterior
Printer sizes and weight
Width x Height x Depth mm 252 x 288 x 460
Weight kg 10
Label sensor with position indication
Slit sensor For labels on the leading edge or die-cut marks and the end of the material
Reflective sensor from below or from above For print marking leading edge and end of material
Distance sensor to positioning edge Left-handed mm 5 - 60 -
Distance sensor from centre to positioning edge Centred mm/td> - 0-55
Height of material passage mm 2 2
RFID
Read/write device HF ISO/IEC 15693, 13,56 MHz -
Read/write device UHF ISO/IEC 18000-6C/EPC Class 1 Gen 2 -
Electronics
Processor 32 bit clock frequency MHz 800
Main memory (RAM) MB 256
Data storage (IFFS) MB 50
Plug-in for SD cards (SDHC, SDXC) up to GB 512
Battery for time and date, real-time clock standard
Data storage when power is switched off (e.g. serial number) standard
USB WLAN stick 802.11b/g/n 2.4 GHz standard (included as an extra item in the delivery)
Interfaces
RS232C 1,200 to 230,400 baud/8 bit standard
USB 2.0 high-speed device for PC connection standard
Ethernet 10/100 BASE-T LPD, IPv4, IPv6, RawIP printing, DHCP, HTTP, FTP, SMTP, SNMP,
TIME, NTP, Zeroconf, SOAP web service
1 x USB host at the control panel for
1 x USB host at the control panel for		 Service key or USB stick
USB WLAN stick 802.11b/g/n 2.4 GHz
2 x USB host on the back of the device for Keyboard, Barcode scanner, USB memory stick, USB Bluetooth adapter, USB WLAN stick 802.11b/g/n 2.4 GHz + a/n/ac 5 GHz with rod antenna
WLAN 802.11b, g, n, access point or station mode GHz 2,4 standard / 5
Peripheral connection USB host, 24 DC standard
Digital I/O with 8 inputs and outputs: Dispensing/base unit standard /
Drift data
Power supply 100 - 240 VAC ~ 50/60 Hz, PFC
Power consumption Standby <10 W / normal 150 W / maximum 300 W
Temperature / Humidity: Operation 0 - 40°C / 10 - 85% non-condensing
Temperature / humidity: Storage 0 - 60°C / 20 - 85% non-condensing
Temperature / humidity: Transport -25 - 60°C / 20 - 85% non-condensing
Authorisations CE, FCC class A, CB, CCC, cUL
